Rocker Light Switches:
Plate size: 86mm x 86mm (1 gang, 2 gang & 3 gang)
Plate size: 146mm x 86mm (4 gang)
Use as 1 or 2 way (1 gang intermediate also available)
Required back box depth: 25mm or deeper
Rated Amps: 10A

Toggle Light Switches:
Plate size: 86mm x 86mm (1 gang & 2 gang)
Plate size: 146mm x 86mm (3 gang & 4 gang)
Use as 1 or 2 way (1 gang intermediate also available)
Required back box depth: 25mm or deeper
Rated Amps: 10A

Single & Double Plug Sockets:
Plate size: 86mm x 86mm (single)
Plate size: 146mm x 86mm (double)
Required back box depth: 25mm or deeper (recommend 35mm unless box is sunk into wall)
Rated Amps: 13A DP. USB Chargers: 1 side 1A & 1 side 2.1A

Dimmer Switches Rotary:
Push on/off and turn to dim.
Plate size: 86mm x 86mm (1 gang & 2 gang)
Plate size: 146mm x 86mm (3 gang & 4 gang)
Required back box depth: 35mm or deeper
400W: 60w minimum load, 400w maximum load. Halogen Only
700W: 60w minimum load, 700w maximum load. Halogen Only
LED: 1 to 10 LED bulbs (max 120W). 300W max load if used with halogen bulbs. V-Pro Trailing Edge.
Use as 1 or 2 way (2 way only with an on/off switch)

20 Amp Switches:
Plate size: 86mm x 86mm
Required back box depth: 25mm or deeper
Rated Amps: 20A DP (Double Pole)

45 Amp Switches:
Plate size: 86mm x 86mm (single)
Plate size: 146mm x 86mm (double with 13A socket)
Required back box depth: 35mm or deeper
Rated Amps: 45A DP (Double Pole)

Shaver Sockets:
Plate size: 146mm x 86mm
Required back box depth: 47mm
Rated Voltage: 115V~240V AC

2 & 5 Amp Sockets:
Plate size: 86mm x 86mm
Required back box depth: 25mm or deeper
Rated Amps: 2A / 5A

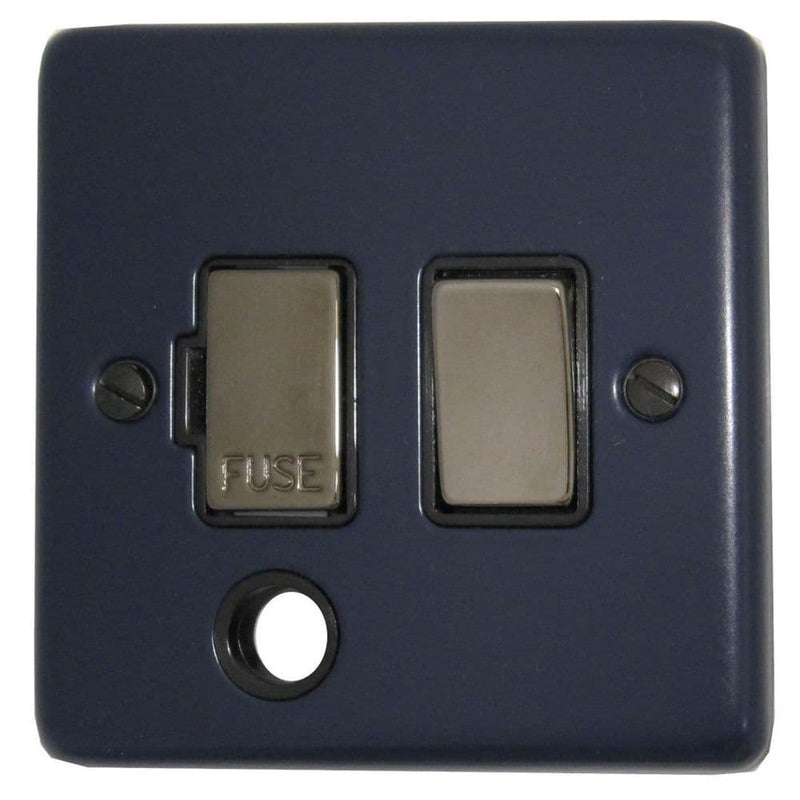

TV, Satellite, RJ45, BT, Fuse, Flex, Triax, Phono & Fan Isolator Sockets:
Plate size: 86mm x 86mm
Required back box depth: 25mm or deeper

Euro Plates:
Plate size: 86mm x 86mm (single)
Plate size: 146mm x 86mm (double)
These are empty designed for modular inserts to clip in.
Required back box depth: Depends on module type.

Blank Plates:
Plate size: 86mm x 86mm (single)
Plate size: 146mm x 86mm (double)
Required back box depth: 16mm or deeper
