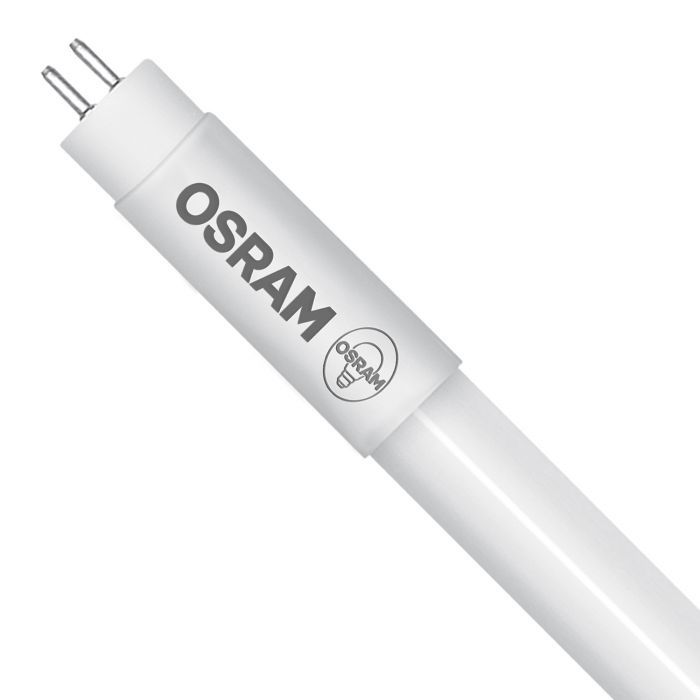

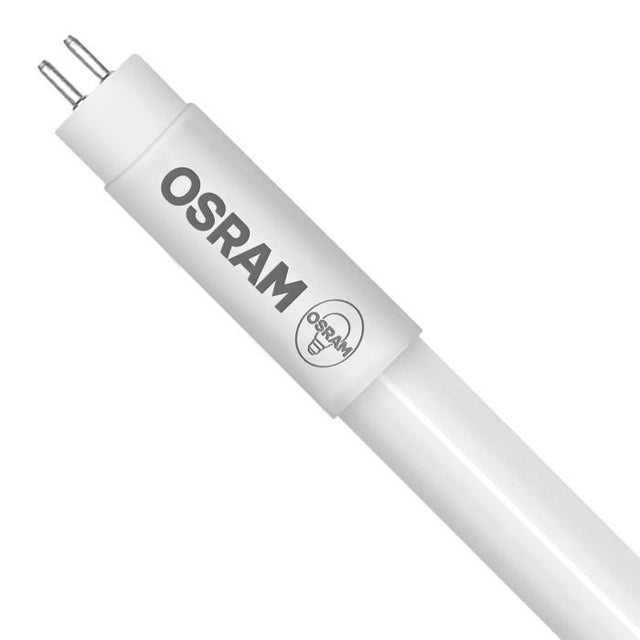

F26T5L-84HO-1-OS - 26w T5 1200mm Colour:84 SubstiTUBE High Output 54W
F26T5L-84HO-1-OS - 26w T5 1200mm Colour:84 SubstiTUBE High Output 54W is ordered in from our warehouse and will be shipped as soon as we receive it.
Couldn't load pickup availability
Return Information
Return Information
If you have any problems with your order, please get in touch with us to help resolve it. Contact Us
If you are not completely satisfied with your order, you can return any and all un-wanted products. Returns must be made within 60 days of the delivery date.
Please find our returns form here
Please ensure you include a copy of this form within the returns box. This will allow our returns team to process your refund quickly.
Delivery and Shipping
Delivery and Shipping
Orders Under £25.00 - £3.29 inc Vat
Orders £25 and over - Free
Next Working Day (Monday-Friday) - Ordered by 3pm - £5.89
Long fluorescent tubes - £12.00
Saturday Delivery - Please Call 01926 754 007
SubstiTUBE T5 HF HO54 26 W/4000 K 1149 mm
Product benefits
- No bending thanks to glass technology
- Quick, simple and safe replacement without rewiring
- High luminous flux for sophisticated lighting tasks
TECHNICAL DATA
ELECTRICAL DATA
| Nominal wattage | 26 W |
| Construction wattage | 26.00 W |
| Nominal voltage | 40…70 V |
| Claimed equiv. conventional lamp power | 54 W |
| Nominal current | 147 mA |
| Type of current | AC |
| Inrush current | 28 A |
| Operating frequency | 20…75 kHz |
| Mains frequency | 20…75 kHz |
| Total harmonic distortion | < 20 % |
| Power factor λ | > 0.90 |
PHOTOMETRICAL DATA
| Luminous flux | 4000 lm |
| Luminous efficacy | 153 lm/W |
| Lumen main.fact.at end of nom.life time | 0.70 |
| Light color (designation) | Cool White |
| Color temperature | 4000 K |
| Color rendering index Ra | 83 |
| Light color | 840 |
| Standard deviation of color matching | ≤5 sdcm |
LIGHT TECHNICAL DATA
| Beam angle | 190 ° |
| Warm-up time (60 %) | ‹ 2.00 s |
| Starting time | < 0.5 s |
| Rated beam angle (half peak value) | 190.00 ° |
DIMENSIONS & WEIGHT
| Overall length | 1149.00 mm |
| Diameter | 17.00 mm |
| Tube diameter | 16 mm |
| Maximum diameter | 17 mm |
| Product weight | 155.00 g |
TEMPERATURES & OPERATING CONDITIONS
| Ambient temperature range | -20…+45 °C |
| Maximum temperature at tc test point | 83 °C |
LIFESPAN
| Lifespan | 50000 h |
| Number of switching cycles | 200000 |
| Lumen maintenance at end of serv | 0.70 |
| Rated lamp survival factor at 6,000 | ≥ 0.90 |
ADDITIONAL PRODUCT DATA
| Base (standard designation) | G5 |
| Mercury content | 0.0 mg |
| Mercury-free | Yes |
| Design / version | Frosted |
CAPABILITIES
| Dimmable | No |
CERTIFICATES & STANDARDS
| Energy efficiency class | D 1) |
| Energy consumption | 29.00 kWh/1000h |
| Type of protection | IP20 |
| Standards | CE |
| Photobiological safety group acc. to EN62778 | RG0 |
1) Energy efficiency class (EEC) on a scale of A (highest efficiency) to G (lowest efficiency)
COUNTRY-SPECIFIC CATEGORIZATIONS
| Order reference | LEDTUBE T5 HF H |
