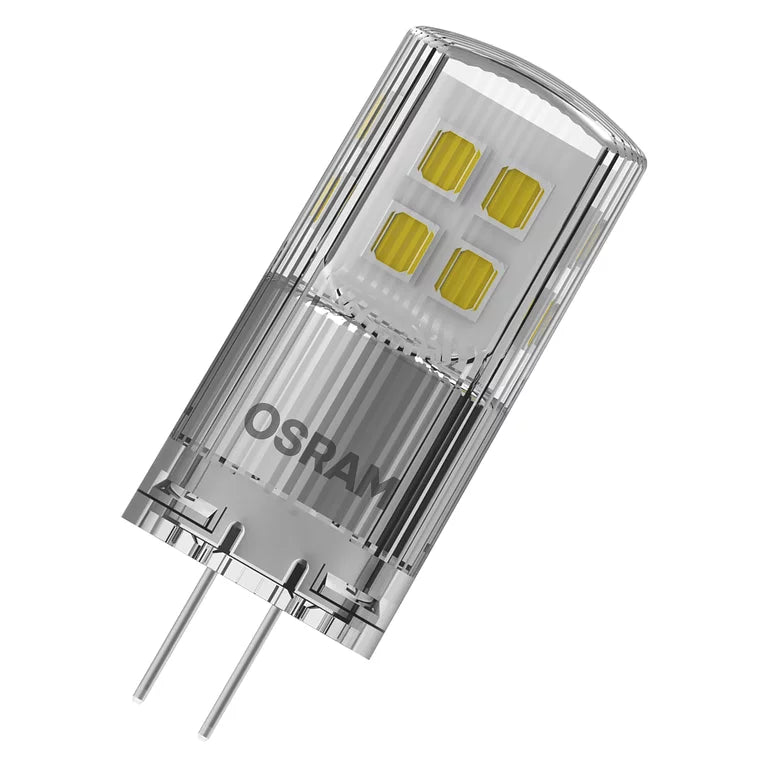

P DIM PIN 20 320 ° 2 W/2700 K G4
P DIM PIN 20 320 ° 2 W/2700 K G4 is ordered in from our warehouse and will be shipped as soon as we receive it.
Couldn't load pickup availability
Return Information
Return Information
If you have any problems with your order, please get in touch with us to help resolve it. Contact Us
If you are not completely satisfied with your order, you can return any and all un-wanted products. Returns must be made within 60 days of the delivery date.
Please find our returns form here
Please ensure you include a copy of this form within the returns box. This will allow our returns team to process your refund quickly.
Delivery and Shipping
Delivery and Shipping
Orders Under £25.00 - £3.29 inc Vat
Orders £25 and over - Free
Next Working Day (Monday-Friday) - Ordered by 3pm - £5.89
Long fluorescent tubes - £12.00
Saturday Delivery - Please Call 01926 754 007
Product benefits
- Variable use at Direct Current and Alternating Current
- Good all-around light emission
- Ideal for decorative and free-burning applications
- Very long lifetime of up to 25,000 h
- Four year guarantee
-
TECHNICAL DATA
ELECTRICAL DATA
Nominal wattage 2 W Construction wattage 2.00 W Nominal voltage 12 V Claimed equiv. conventional lamp power 20 W Nominal current 190 mA Type of current AC/DC Inrush current 2.5 A Max. lamp no. on circuit break. 10 A (B) 47 Max. lamp no. on circuit break. 16 A (B) 76 Total harmonic distortion < 120 % Power factor λ > 0.50 PHOTOMETRICAL DATA
Luminous flux 200 lm Nominal useful luminous flux 90° 200 lm Luminous efficacy 100 lm/W Lumen main.fact.at end of nom.life time 0.70 Light color (designation) Warm White Color temperature 2700 K Color rendering index Ra ≥80 Light color 827 Standard deviation of color matching ≤6 sdcm Rated LLMF at 6,000 h 0.80 Flickering metric (Pst LM) 1.0 Stroboscope effect metric (SVM) 0.4 LIGHT TECHNICAL DATA
Beam angle 320 ° Warm-up time (60 %) ‹ 0.50 s Starting time < 0.5 s Rated beam angle (half peak value) 320.00 ° DIMENSIONS & WEIGHT
Overall length 40.00 mm Diameter 15.00 mm Maximum diameter 15 mm Product weight 5.5 g TEMPERATURES & OPERATING CONDITIONS
Ambient temperature range -20…+40 °C Maximum temperature at tc test point 90 °C LIFESPAN
Lifespan 25000 h Number of switching cycles 100000 Lumen maintenance at end of serv 0.70 Rated lamp survival factor at 6,000 ≥ 0.90 ADDITIONAL PRODUCT DATA
Base (standard designation) G4 Mercury content 0.0 mg Design / version Clear CAPABILITIES
Dimmable Yes CERTIFICATES & STANDARDS
Energy efficiency class F 1) Energy consumption 2.00 kWh/1000h Type of protection IP20 Standards CE, EAC Photobiological safety group acc. to EN62778 RG1 1) Energy efficiency class (EEC) on a scale of A (highest efficiency) to G (lowest efficiency)
COUNTRY-SPECIFIC CATEGORIZATIONS
Order reference LEDPPIN20D CL 2 LOGISTICAL DATA
Temperature range at storage -20…+80 °C ENERGY LABELLING REGULATION DATA ACC EU 2019/2015
Lighting technology used LED Non-directional or directional NDLS Mains or non-mains NMLS Light source cap-type (or other electric interface) G4 Connected light source (CLS) No Color-tuneable light source No Envelope No High luminance light source No Anti-glare shield No Correlated colour temperature type SINGLE_VALUE Standby power 0.00 Claim of equivalent power Yes Length 40.00 mm Height 15.00 mm Width 15.00 mm Chromaticity coordinate x 0.458 Chromaticity coordinate y 0.410 Beam angle correspondence SPHERE_360 Survival factor 0.90 LED light source replaces a fluorescent light source No EPREL ID 522864 Model number AC32099
